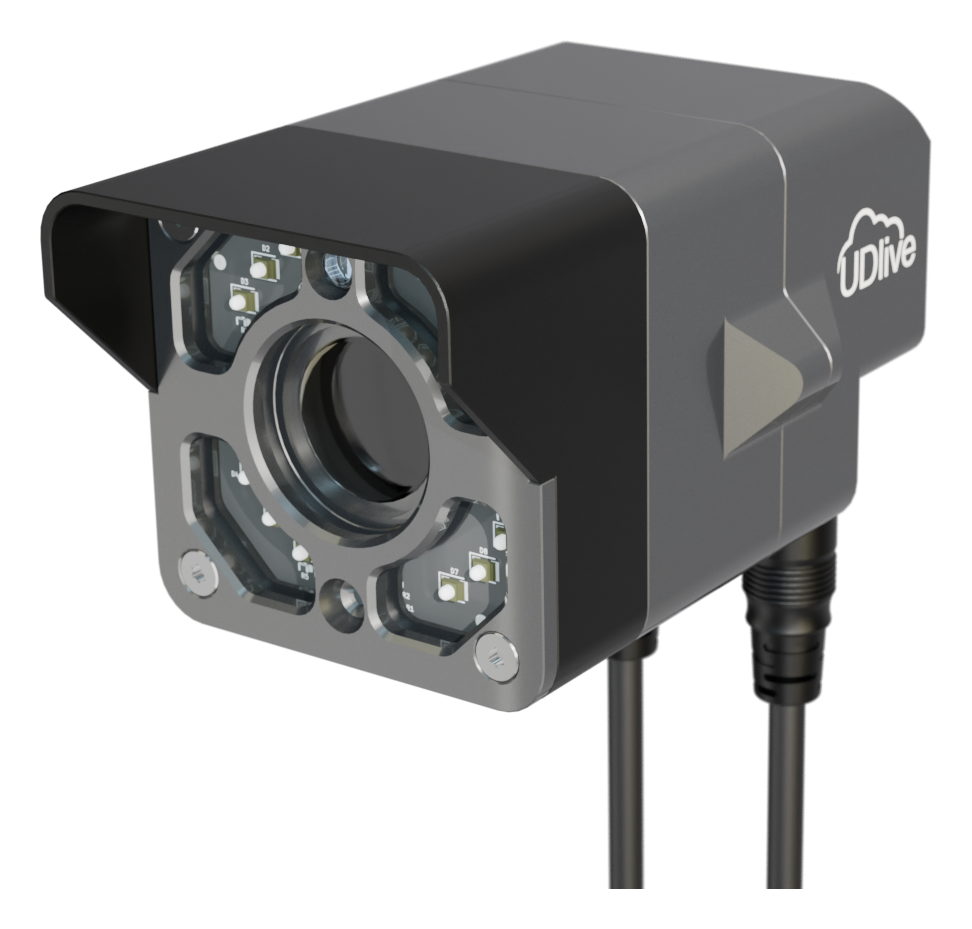

Image of UDlive Vision advanced telemetry camera

UDlive Vision

Advanced AI Camera for Environmental Monitoring

UDlive Vision is a high-performance, ultra-low-power smart camera designed for remote environmental monitoring and industrial telemetry. Built on a powerful ARM-based AI processing architecture, it combines a high-sensitivity 8MP BSI sensor with a dedicated 600 Gops hardware Neural Processing Unit (NPU) for sophisticated edge analytics.

8MP Back-Side Illuminated CMOS with enhanced near-infrared response

Motorized 6-22mm zoom/focus lens with fast F1.6 aperture

800MHz ARM Cortex-M55 with dedicated 600 Gops NPU

1.2W peak power, optimised for solar and battery sites

IP67/IP68 rated, -40°C to +85°C operating range

5V to 24V DC wide-range input

For more information on UDlive Vision, our advanced AI camera for environmental monitoring.

Contact UDlive Now

Edge AI Analytics

The dedicated 600 Gops Neural Processing Unit allows UDlive Vision to perform complex vision tasks locally, eliminating cloud dependency and reducing bandwidth consumption. Deploy sophisticated AI models at the edge for real-time decision making.

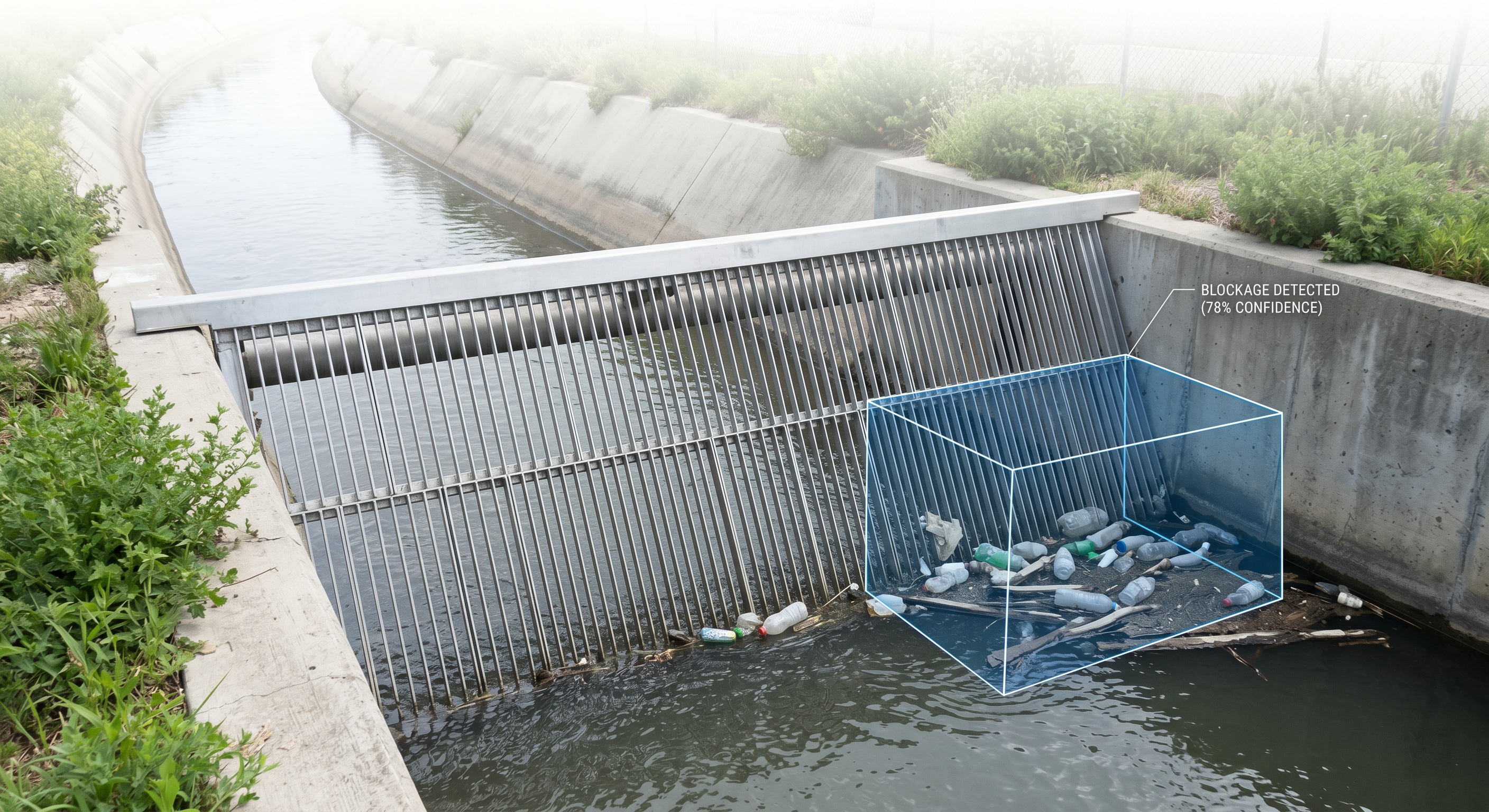

AI blockage detection showing debris identified at a drainage grate with bounding box overlay.

Blockage Detection

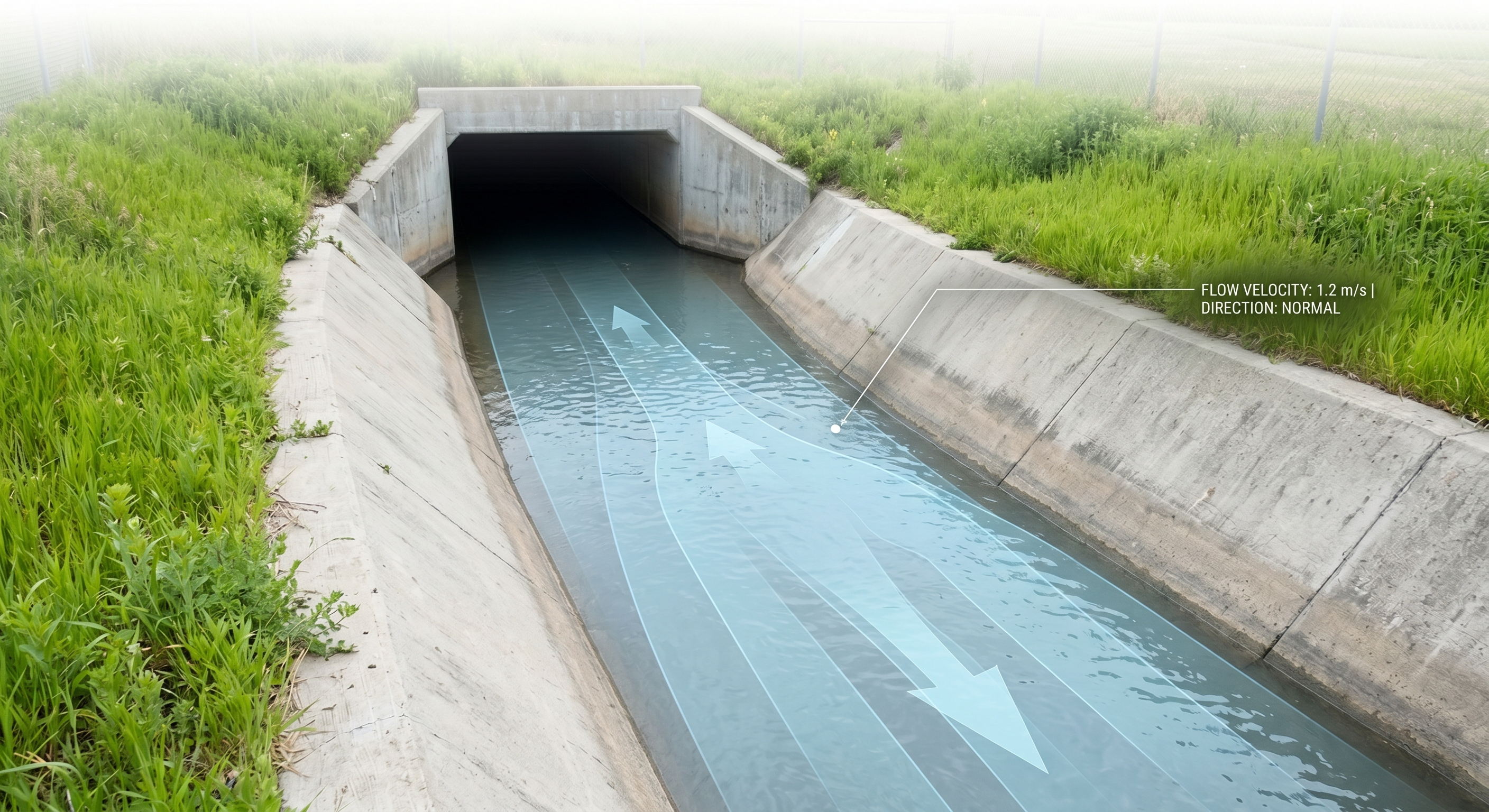

AI flow analysis showing water velocity vectors and direction overlay on a drainage channel.

Flow Analysis

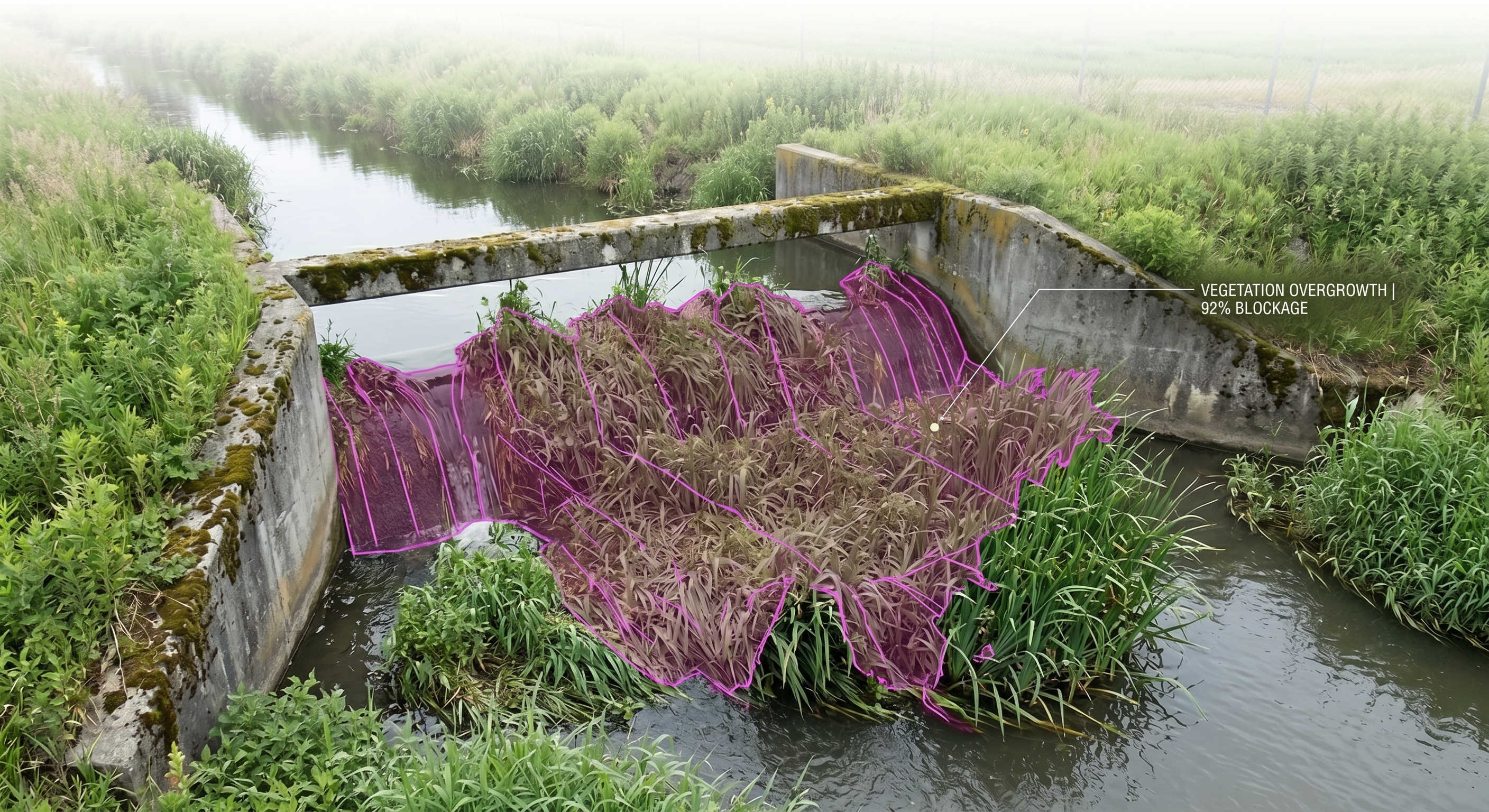

AI segmentation showing vegetation overgrowth detected at a drainage structure with percentage blockage overlay.

Vegetation Monitoring

Blockage Detection

Real-time object detection and classification to identify blockages, debris accumulation, and obstructions at drainage structures with confidence scoring.

Flow Analysis

Optical flow analysis for monitoring water velocity and direction. Track flow patterns in real-time to detect anomalies and trigger alerts.

Vegetation Monitoring

Image segmentation to detect vegetation overgrowth and calculate blockage percentage, enabling proactive maintenance scheduling.

Depth Estimation

On-device depth estimation using the dedicated NPU for 3D scene understanding and volumetric analysis without additional sensors.

Discover how UDlive Vision's edge AI analytics can transform your environmental monitoring.

Contact UDlive Now

UDlive Vision camera rear view showing Ethernet and RS485 connectivity ports.

Connectivity & Integration

UDlive Vision offers multi-protocol connectivity for seamless integration into existing monitoring infrastructure. Native compatibility with CatsEye II RTU and CatsEye II Pixel II enables unified remote management across your entire sensor network.

Image capture can be triggered by other sensors, such as level, flow, and quality parameters. Industrial-grade interfaces ensure reliable data transfer even in the most demanding environments.

Modbus TCP & RTU: Native support for Modbus TCP over Ethernet and Modbus RTU over RS485, allowing direct polling by SCADA systems.

WebRTC Live Streaming: 10/100 Mbps Ethernet with WebRTC video feed for low-latency live monitoring and remote inspection.

USB 2.0 & MicroSD: USB 2.0 High-Speed for calibration and firmware, plus MicroSD slot supporting high-endurance cards up to 1TB.

Learn how UDlive Vision integrates with your existing Modbus infrastructure and monitoring platform.

Contact UDlive Now

Advanced Capabilities

Engineered for remote assets where reliability is paramount. UDlive Vision features enterprise-grade lifecycle management, integrated health monitoring, and audio intelligence for truly autonomous operation.

Delta OTA Updates

Secure over-the-air firmware updates with delta patching reduce data consumption by up to 90%, making it possible to update AI models even over slow cellular or satellite links.

Health Monitoring & Tamper Detection

Integrated 6D Inertial Measurement Unit provides real-time tamper detection and skew/sink/tilt monitoring via Modbus for predictive maintenance.

Audio Intelligence

High-performance waterproof MEMS microphone enables environmental sound monitoring and acoustic tamper detection with 65 dBA SNR.

SecureBoot & Fail-safe Rollover

Cryptographically signed firmware verified by hardware-level SecureBoot. Automatic rollback to last known-good firmware in the event of a power loss during update.

For more information on how UDlive Vision can provide reliable, secure, and intelligent monitoring for your environment.

Contact UDlive Now
